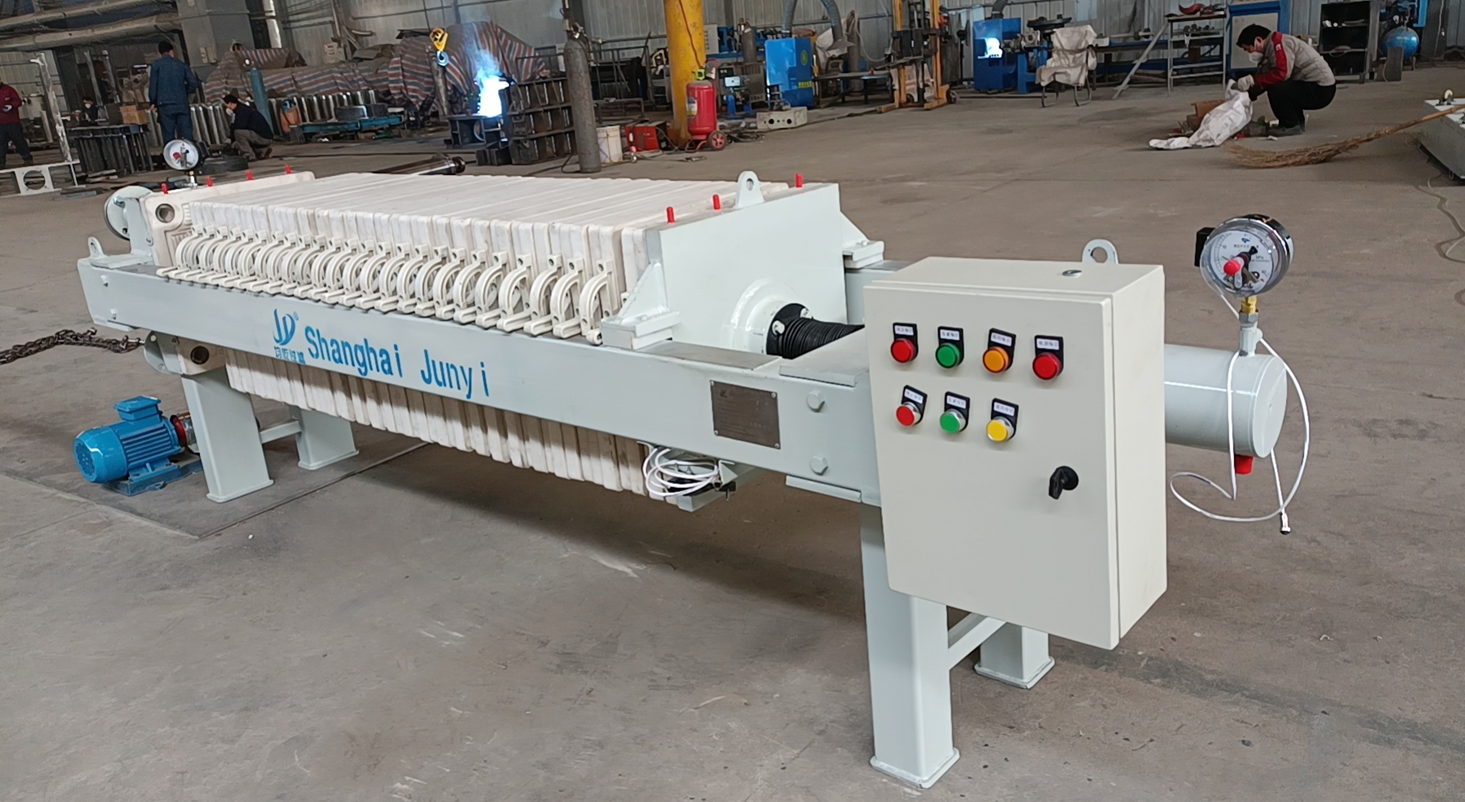

Indonesia's leading building materials producer has successfully introduced the latest fully automatic plate and frame filter press developed by Shanghai Junyi Company. This equipment will be specifically used for the precise filtration process of building materials raw materials such as cement and limestone slurry, marking a new stage of intelligent production technology in Indonesia's building materials industry.

Highlights of technological innovation

The plate and frame filter press delivered this time integrates multiple innovative technologies

Large-capacity filtration system: With a 5㎡ filtration area and a 75L filter chamber volume, the single processing capacity is increased by 40%

Intelligent control system: Equipped with fully automatic hydraulic compression and pressure maintenance functions, it enables unmanned operation

Durable design: Carbon steel main structure combined with PP filter plates (temperature resistance ≤45℃), suitable for highly alkaline slurry environments

High-efficiency supporting system: It includes a 3kw air compressor (8bar pressure) and a pneumatic diaphragm pump (9m³/h flow rate)

The production efficiency of the customer has been significantly enhanced

The production director of the building materials industry in Indonesia said, "The new equipment has increased our filtration efficiency by 50%, allowing us to process an additional 30 tons of raw materials every day." Its large-sized filter plate design of 510×510mm is particularly suitable for the high solid content characteristics of cement slurry.

Core advantages of the equipment

High degree of automation: The entire filtration cycle is completed with one-click operation

Strong processing capacity: A working pressure of 1.0Mpa ensures the filtration effect of high-viscosity slurry

Energy conservation and environmental protection: The 202kw hydraulic system, combined with intelligent pressure maintenance, reduces energy consumption by 25%

Easy maintenance: Modular design enables quick replacement of major components

Quick overview of technical parameters

Processing capacity: 9m³/h (with matching pump)

Operating temperature: < 70℃

Overall dimensions: 2580×700×900mm

Total weight: approximately 900kg
