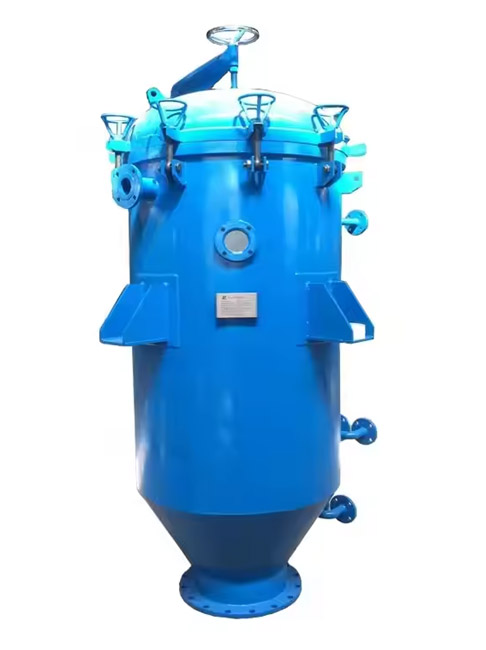

Auto Slag Discharging Leaf Filter
Product descriptions from the supplierProduct OverviewTitle goes here.Blade filter Shanghai Junyi Leaf filter is a filter with high efficiency, energy saving an
Product Overview
Title goes here.
Blade filter Shanghai Junyi Leaf filter is a filter with high efficiency, energy saving and closed operation. This is remarkable Due to its small vertical structure, high filtration efficiency and good transparency and fineness of the filtrate.
|
Features |
||||
|
1.Reasonable structure,covering less area. |
||||
|
2.Efficient filtration,higher precision,lower loss of material (no need the filter cloth,filter paper or paper element,but onlyconsume the filter aid) |
||||
|
3.Discharging the slag by automatic vibrating.Easy operation and reduce the labor intensity. |
||||
|
4.The mesh is made of stainless steel.No need to be changed.The production can be continuous. |
|
MODEL |
Filtraition Area （M2） |
Volume of Filter Tank（L） |
Processing Capacity （T/H） |
||
|
Oil |
Resin |
Drinks |
|||
|
JYBL-2 |
2 |
30 |
0.4-----0.6 |
1---1.5 |
1---3 |
|
JYBL-4 |
4 |
60 |
0.5---1.2 |
2---3 |
2---5 |
|
JYBL-7 |
7 |
105 |
1----1.8 |
3---6 |
4---7 |
|
JYBL-10 |
10 |
150 |
1.6---3 |
5---8 |
6---9 |
|
JYBL-12 |
12 |
240 |
2---4 |
6---9 |
8---11 |
|
JYBL-15 |
15 |
300 |
3---5 |
7---12 |
10---13 |
|
JYBL-20 |
20 |
400 |
4---6 |
9---15 |
12---17 |
|
JYBL-25 |
25 |
500 |
5---7 |
12---19 |
16---21 |
|
JYBL-30 |
30 |
600 |
6---8 |
14---23 |
19---25 |
|
JYBL-36 |
36 |
720 |
7---9 |
16---27 |
23---30 |
|
JYBL-40 |
40 |
800 |
8---11 |
21---34 |
30---38 |
|
JYBL-45 |
45 |
900 |
9---13 |
24---39 |
36---44 |
|
JYBL-52 |
52 |
1040 |
10---15 |
27---45 |
42---51 |
|
JYBL-60 |
60 |
1200 |
11---17 |
30---52 |
48---60 |
|
JYBL-70 |
70 |
1400 |
12---19 |
36---60 |
56---68 |
|
JYBL-80 |
80 |
1600 |
13---21 |
40---68 |
64---78 |
|
JYBL-90 |
90 |
1800 |
14---23 |
443---72 |
68---82 |
Company Profile
After years of hard exploration, we has established a complete and effective service system and built an experienced service team, which not only provides customers with site planning and drawing of the layout and flow chart, but also can send our technical personnel to the site to guide the installation and commission for our customers.
We have a very strict and complete quality control system, which promises that goods we produced are always of the best quality, the enough inspectors to ensure that each product can meet the quality requirements of customers. We always final Inspection before shipment.
